2D LiDAR Sensor
2D Obstacle Avoidance Sensor
EK-OBS-05L-IO
| Operating Voltage | DC18~32V |
| Rated Power | about 2W |
| Detection Distance | 5m |
| Scanning Angle | 270˚ |
| Angular Resolution | 0.5˚ |
| Protection Areas | 3 |
| Obstacle Avoidance Channels | 64 |
| Basic Error | ±40mm |
2D LiDAR Sensor(Data Output)
EKLR Series
| Operating Voltage | DC12~32V |
| Rated Power | 5W |
| Detection Distance | 25m |
| Scanning Angle | 270˚ |
| Angular Resolution | 0.225˚ |
| Protection Areas | 3 |
| Distance Resolution | 1mm |
| Accuracy | ±40mm |
2D LiDAR(Measurement+Raw Data)
EKM Series
| Operating Voltage | DC11~28V |
| Rated Power | 8W |
| Detection Distance | 30m |
| Scanning Angle | 360˚ |
| Angular Resolution | 0.036˚ |
| Measurement Error | ±20mm |
| Output | Ethernet UDP protocol, PNP |

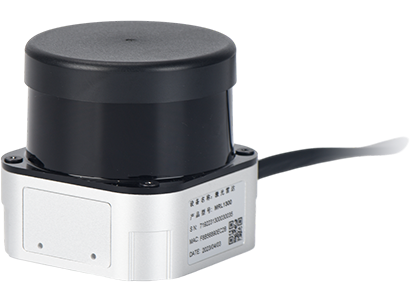

2D LiDAR Sensor
MRL Series
| Voltage, operational | DC12~28V(＞15W) |
| Power consumption | 4W(typical value) |
| Working range | 50m |
| Scanning Angle | MAX:360˚ |
| Angular Resolution ratio | 0.033°@10Hz/0.067°@20Hz/0.1°@30Hz |
| Protection class | IP67 |
| Response time | ＜67ms |
| Ranging accuracy | ±20mm |
